Description

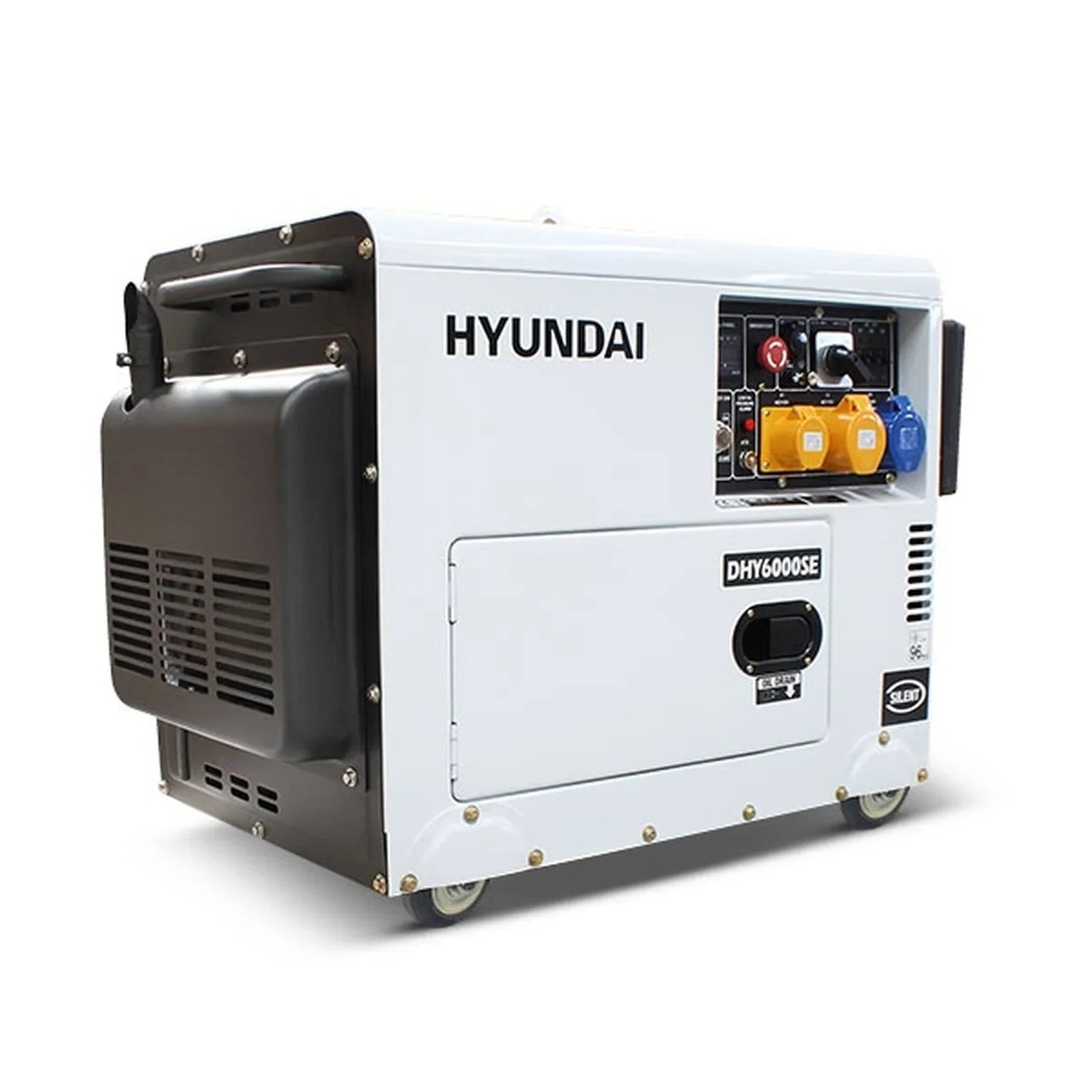

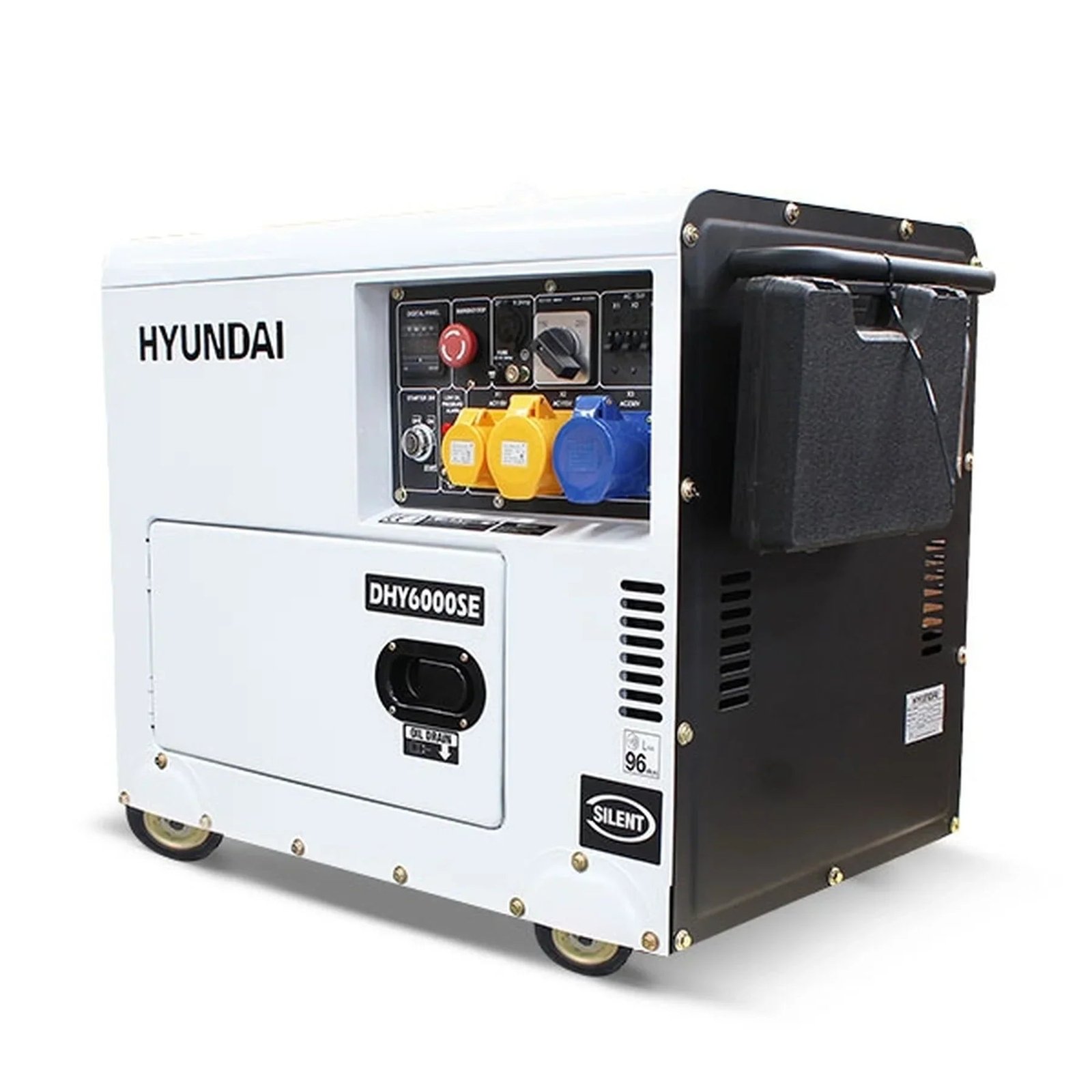

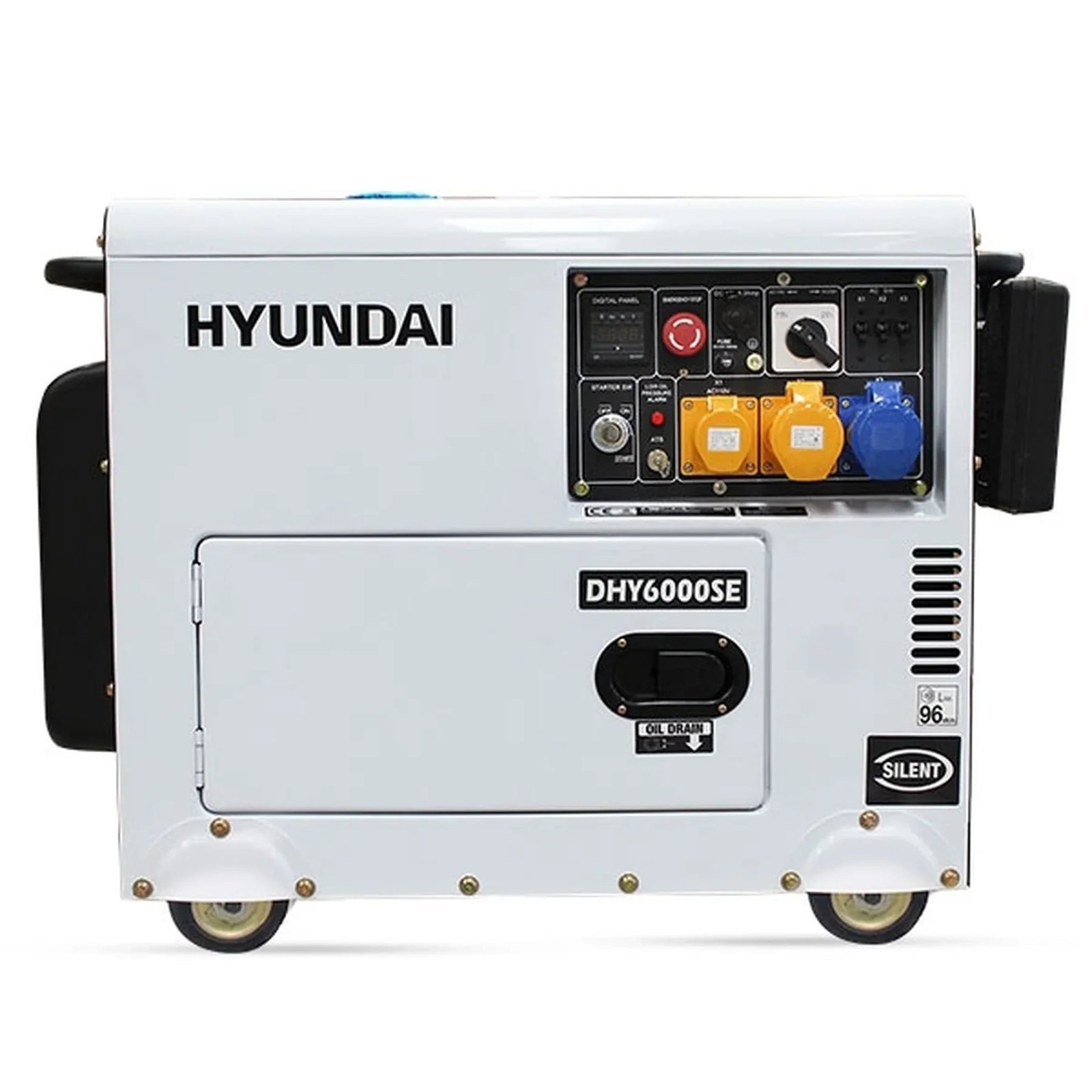

The Hyundai DHY6000SE is a 5.2kW diesel generator built for home and business standby power during outages. For outdoor use only – never run a generator in an enclosed space.
Highlights
- Produces 5.2kW / 6.5kVA maximum output
- Electric start with ATS compatibility
- Efficient D420 engine
- Equipped with a large 13L fuel tank for a long-running time
- Comes fitted with safety features such as low oil alert and automatic engine shut down
- Low noise sound attenuated canopy
- 1 year / 1,000 hour warranty*
- Full UK parts and service operation
Technical Specification
- Model – DHY6000SE
- Rated/Prime kVA* – 5.6
- Rated/Prime kW – 4.5
- Max/Standby kVA* – 6
- Max/Standby kW – 5.2
- Phase – Single
- Voltage – 115 / 230
- Connection Method(s) – Sockets – 1 x 115V/16A, 1 x 115V/32A, 1 x 230V/32A
- Rated Speed (RPM) – 3000
- Frequency (Hz) – 50
- Max/Continuous Current (Amps) – 22.6/19.5
- Power Factor (Cosφ) – 1
- Fuel Type – Diesel

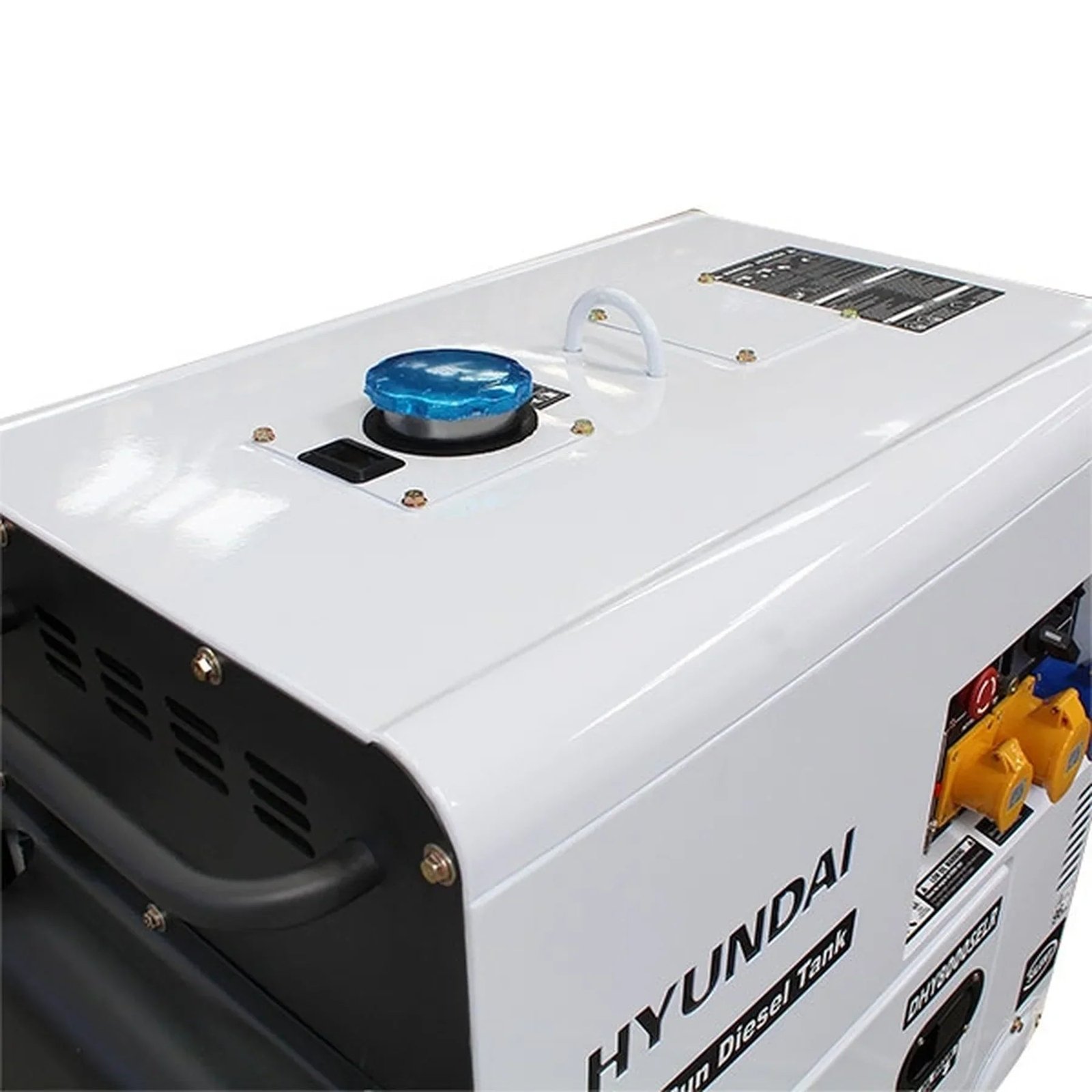

- Fuel Tank (Litres) – 13
- Runtime (Hours) @ 100% Load – 9.03
- Noise Level @ 1m 75% load (dB) – 96
- Noise Level @ 7m 75% load (dB) – 70
- Diesel Engine Model – D400E
- Power Output (hp) – 7.8
- Engine Displacement (CC) – 418
- No. of Cylinders – 1
- Displacement (Litres) – 0.418
- Recommended Oil Type – 15w40 / 10w40
- Oil Capacity (Litres) – 1.65
- Oil Filter Part No. – D400-B9+D400-B8
- Aspiration – Natural
- Fuel Regulation/Governor System – Mechanical
- Fuel Consumption (100% Load) [Litres] – 1.44
- Fuel Filter Part No. – D400-R05
- Cooling Forced – Air-Cooled
- Alternator Model – D400-SO1-4
- Breakers – 1P 28A 1P 19A 1P 13A
- Alternator Type – Brushed
- Voltage Regulation – AVR
- Air Filter Part No. – D400-I4
- Net Weight (kg) – 152
- Gross Weight (kg) – 158
- Wheel Kit? – Yes
- Dimensions L x W x H (mm) – 930 x 530 x 720
- Battery (Ah) – 12v 36a/h
- ATS / MTS Compatible – Yes

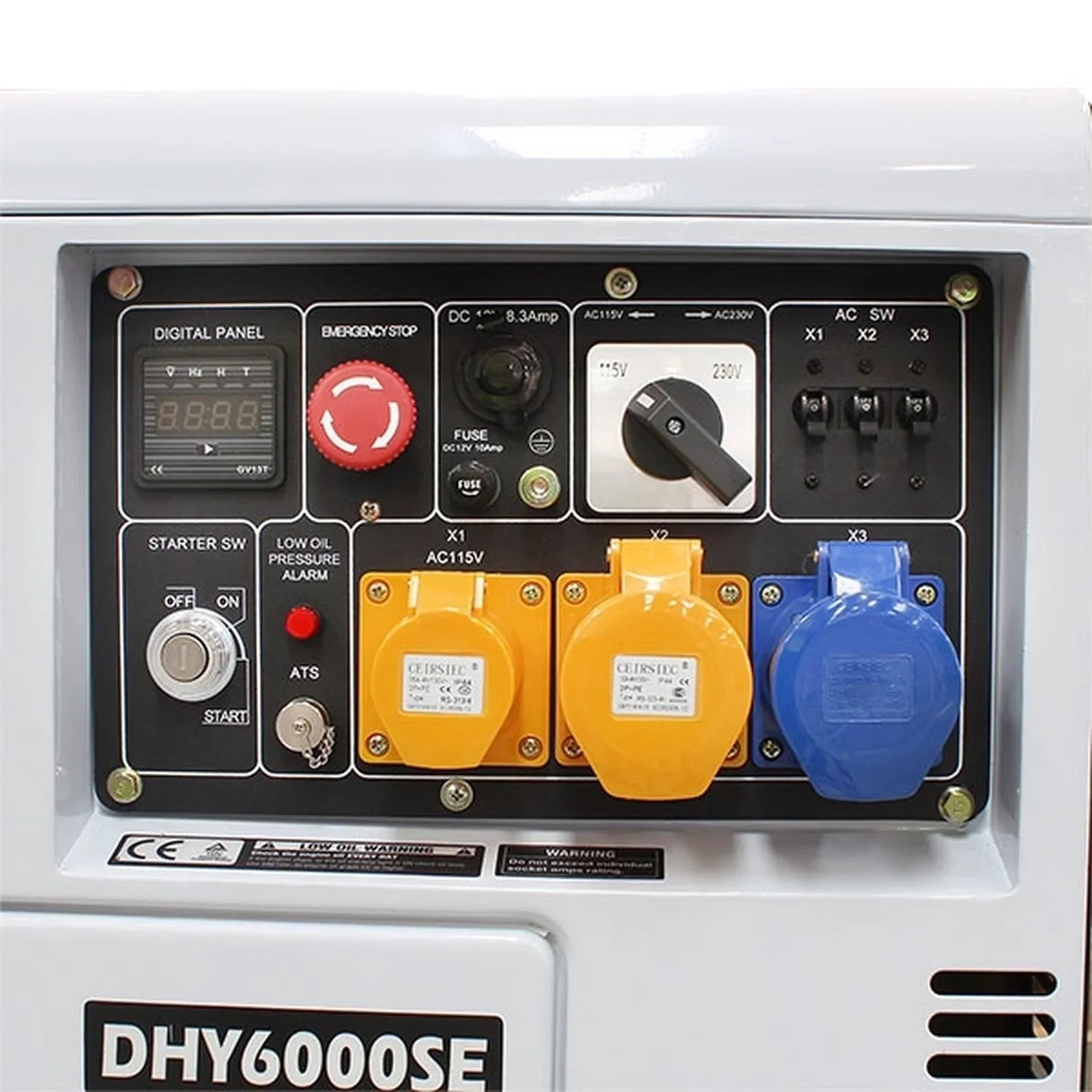

- Control Panel – LED3 DISPLAY
- Warranty – 1 Year / 1000 Hours* (Terms apply)
- Model EAN – 6040001600025
