Description

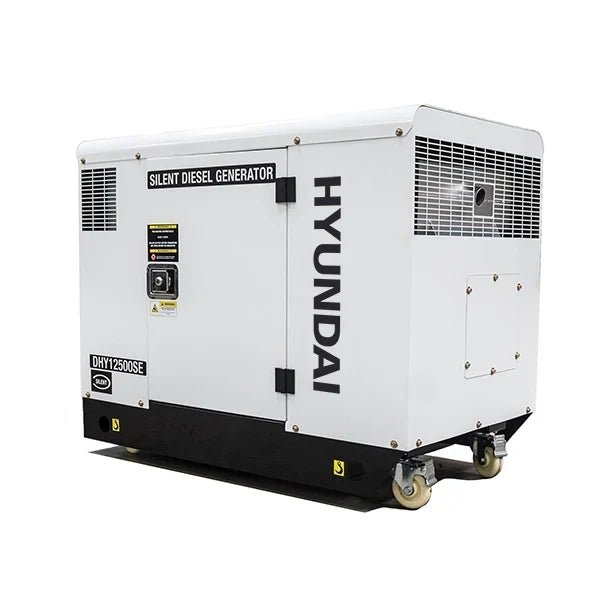

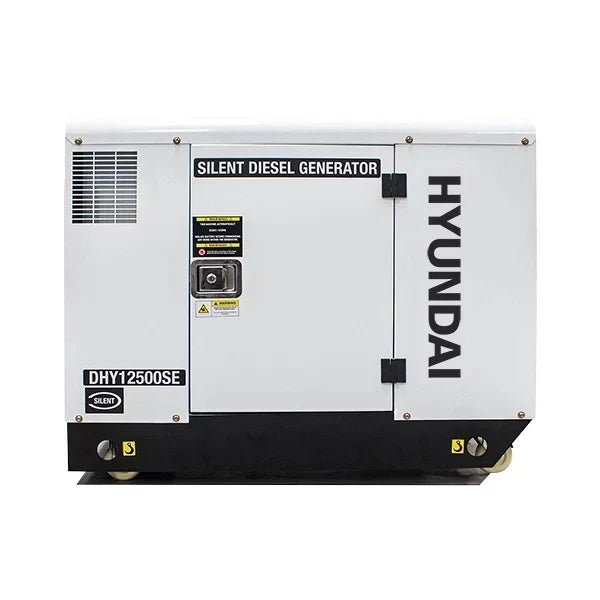

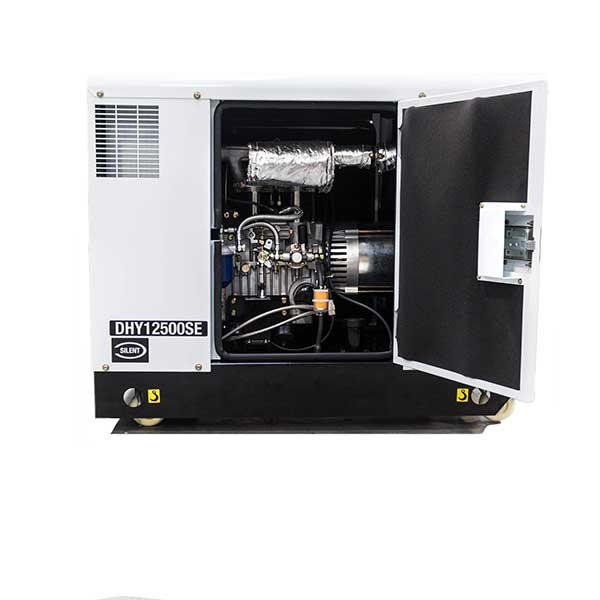

The Hyundai is a 10kW diesel generator built for home and business standby power during outages. For outdoor use only – never run a generator in an enclosed space.
Features
- Single-phase backup diesel generator: Produces up to 12.5kVA / 10kW of power
- Long-run 60L diesel tank: Saves you from having to keep topping up the generator
- Fitted with an AVR alternator: Produces a smooth, clean energy output
- ATS compatible: Able to automatically transfer power to the generator in the event of a power cut
- Low noise generator: Produces 65 to 70db @ 7m
- Peace of mind: 1 year / 1,000 hours warranty* (terms apply)
Technical Specification
- Model – DHY12500SE
- Rated/Prime kVA* – 12.5
- Rated/Prime kW – 10
- Max/Standby kVA* – 13.75
- Max/Standby kW – 11
- Phase – Single
- Voltage – 230
- Connection Method(s) – Sockets – 1 x 32A, 1 x 63A
- Rated Speed (RPM) – 3000
- Frequency (Hz) – 50
- Max/Continuous Current (Amps) – 47.83/43.48
- Power Factor (Cosφ) – 1
- Fuel/Power Source – Diesel
- Fuel Tank (Litres) – 50
- Runtime (Hours) @ 100% Load – 12
- Noise Level @ 1m 75%81.5 load (dB) – 81.5
- Noise Level @ 7m 75% load (dB) – 70

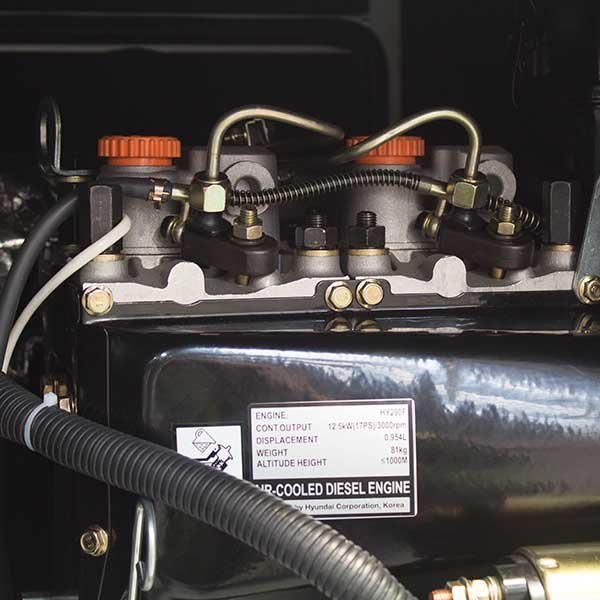

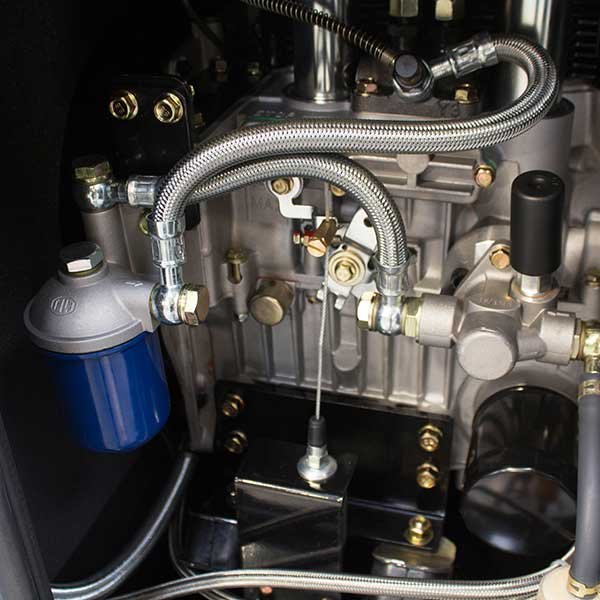

- Diesel Engine Model – HY290F
- Power Output (hp) – 20
- Engine Displacement (CC) – 954
- No. of Cylinders – 2
- Recommended Oil Type – 15w40 / 10w40
- Oil Capacity (Litres) – 3
- Oil Filter Part No. – 3049050901800
- Aspiration – Natural
- Fuel Regulation/Governor System – Mechanical

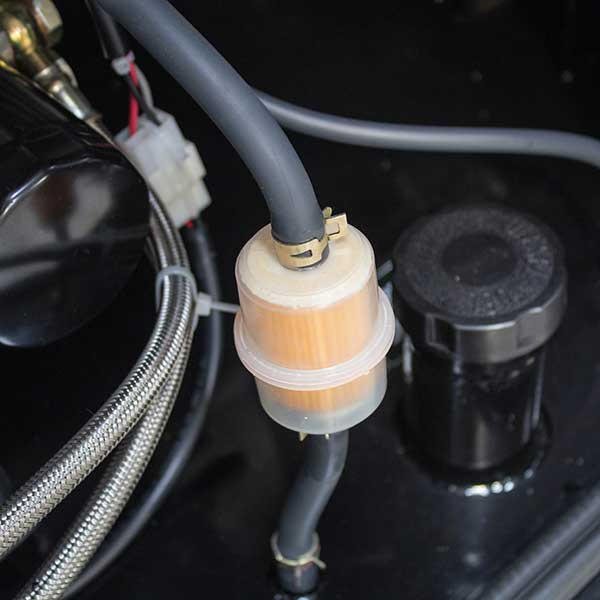

- Fuel Filter Part No. – 3049051001000
- Cooling Forced – Air-Cooled
- Breakers – Yes
- Alternator Type – Brushed
- Voltage Regulation – AVR
- Air Filter Part No. – 3049050700303
- Net Weight (kg) – 270
- Gross Weight (kg) – 290
- Wheel Kit? – Yes
- Dimensions L x W x H (mm) – 1175 x 695 x 1050
- Battery (Ah) – 45
- ATS / MTS Compatible – Yes

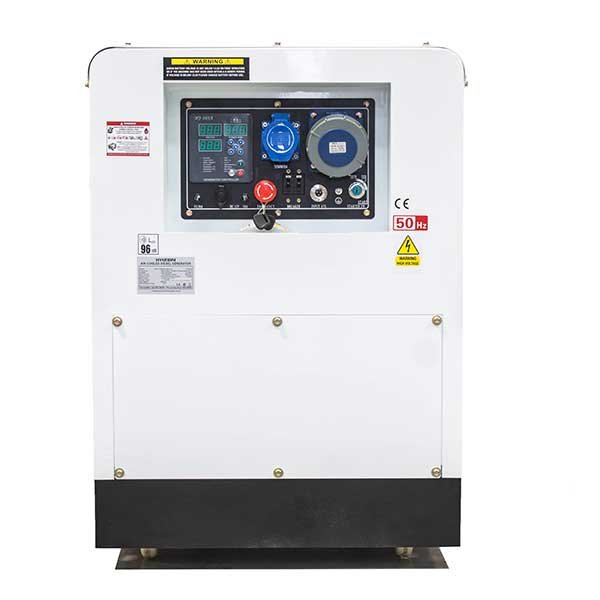

- Control Panel – HJ-103A
- Model EAN – 600231973526
- Warranty – 1 Year / 1000 Hours* (Terms apply)
- Assembly Required? – Yes – some assembly may be required
